Variable Diameter Pipe Indent Marker

The Portable Pipe Marker makes it fast and easy to mark varying sizes of metal pipe and other cylindrical objects.

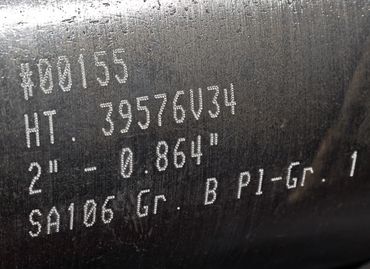

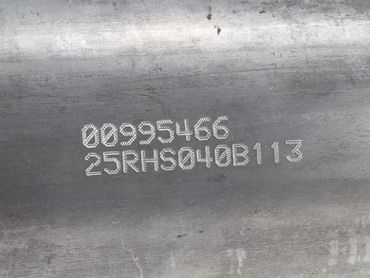

The air driven dot peen system creates indented permanent identification marks such as part numbers, date codes, and company branding.  Dot Peen marking technology, uses a single carbide pin moving up and down a high speed to form characters, logos, and 2D Data Matrix codes.  The maximum recommended character size is typically 1/4 of the pipe’s diameter.

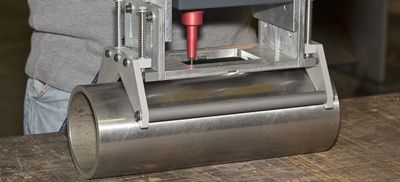

This stamper has a 50 mm x 90 mm marking area.  The adjustable fixture uses four compression springs to fit the stamper snugly onto pipe ranging from 0.75” to 10” diameter.

Data to be marked can be entered on the unit’s AC500 touchscreen controller or received from a host system or a bar code scanner for error-free product identification.  No computer required.

SPECIFICATIONS Marking Window 50 mm x 90 mm (1.97” x 3.54”)

Weight 25 lbs Dimensions 15.9” W x 12.4” H x 9.2” D

Electric Supply 90 – 250 VAC / 50-60 Hz

Air Supply 60 – 90 PSI, clean and dry Operating Environment Humidity: 10 – 80% non-condensing

Temperature: 32°F – 122°F

Interface RS-232, RS-485, Ethernet TCP/IP, I/O, and USB Memory 64 MB internal memory

Languages English, French, Spanish (others available)

Character Height 1.5 mm to maximum of window size Fonts 5 x 7, 11 x 16, OCR, 11 x 16 CH, AHSA, 2D Data Matrix, TrueType fonts
